1 Welcome

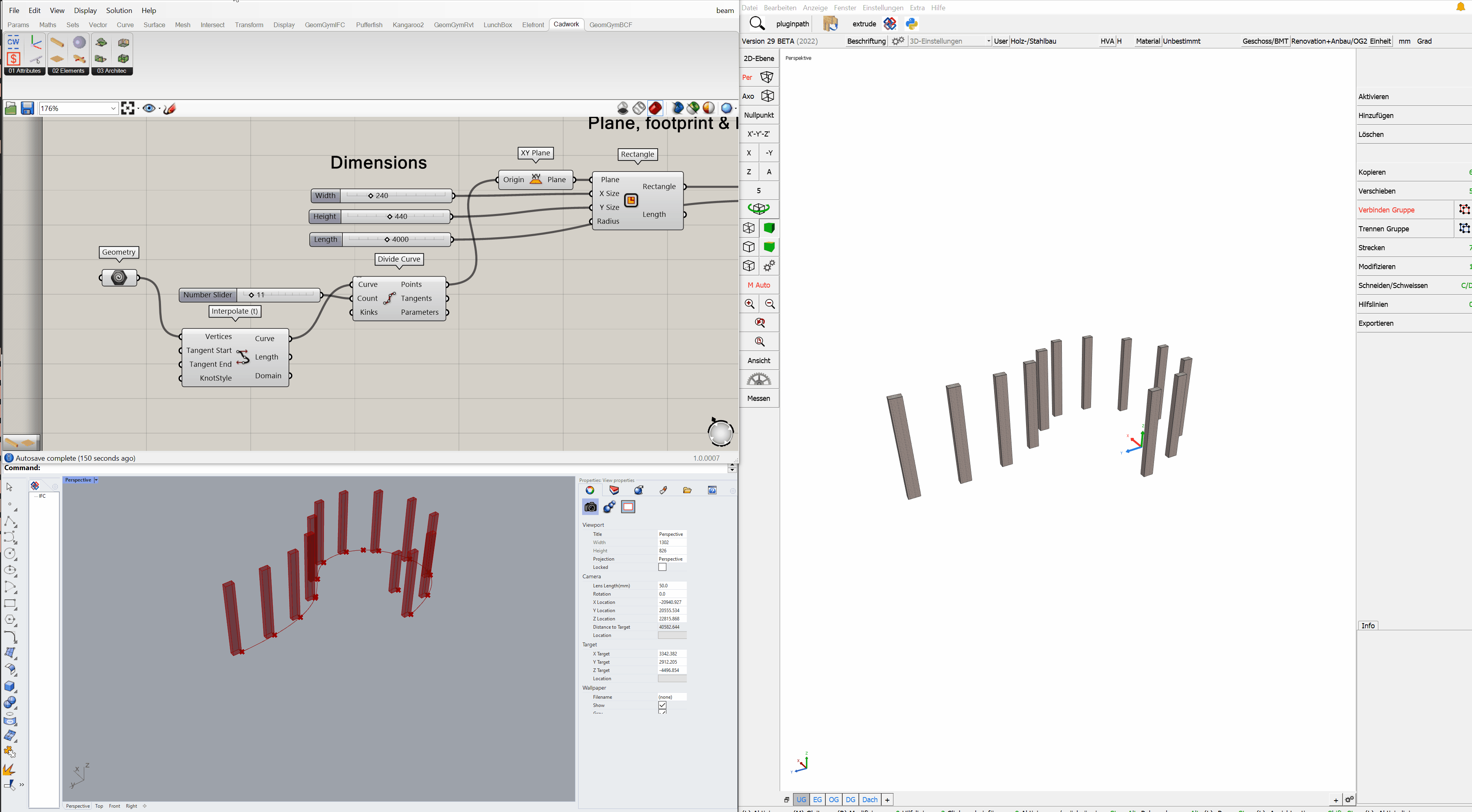

Rhino.Inside cadwork is a tool that allows you to embed Rhino 7 in cadwork 3D. Take advantage of the surface modeler in your cadwork 3D environment.

Add-on Download

food4Rhino - Rhino.Inside cadwork

Food4Rhino is McNeel’s community service for plug-ins. Users can find the latest Rhino plug-ins, Grasshopper add-ons, scripts and much more. Moreover, they can contact developers and share their applications.

Grasshopper

Grasshopper is a graphical algorithm editor that integrates with Rhino3D modeling tools. You use Grasshopper to design algorithms that then automate tasks in Rhino3D. Grasshopper’s visual “plug-and-play” style gives designers the ability to combine creative problem solving with novel control systems through the use of a fluid graphical interface.

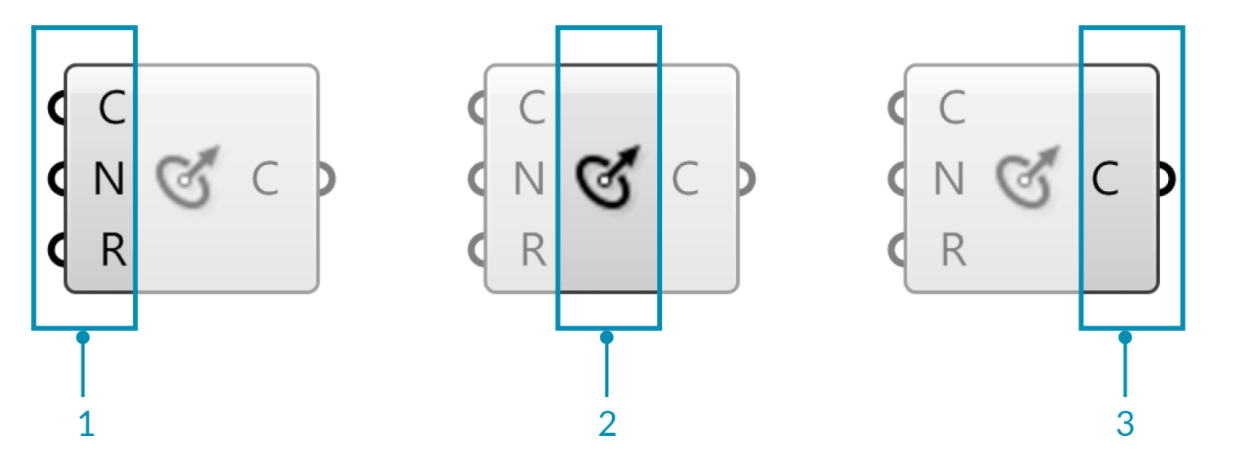

1 The three input parameters of the Circle CNR component.

2 The circle CNR component area.

3 The output parameter of the Circle CNR component.

A component needs data to perform its actions, and it usually produces a result. For this reason, most components have a set of nested parameters called inputs and outputs, respectively. The input parameters are on the left side, and the output parameters are on the right side.

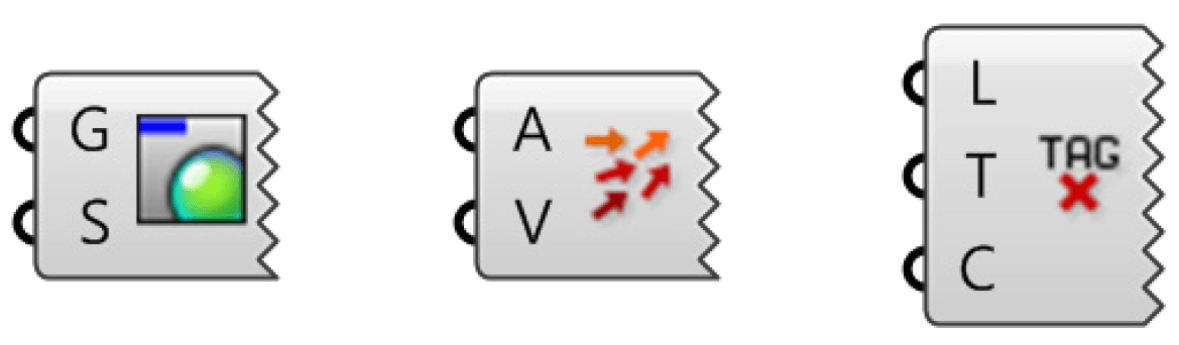

There are a few Grasshopper components that have inputs but no outputs, or vice versa. If a component has no inputs or outputs, it has a jagged edge.

Run Rhino.Inside cadwork

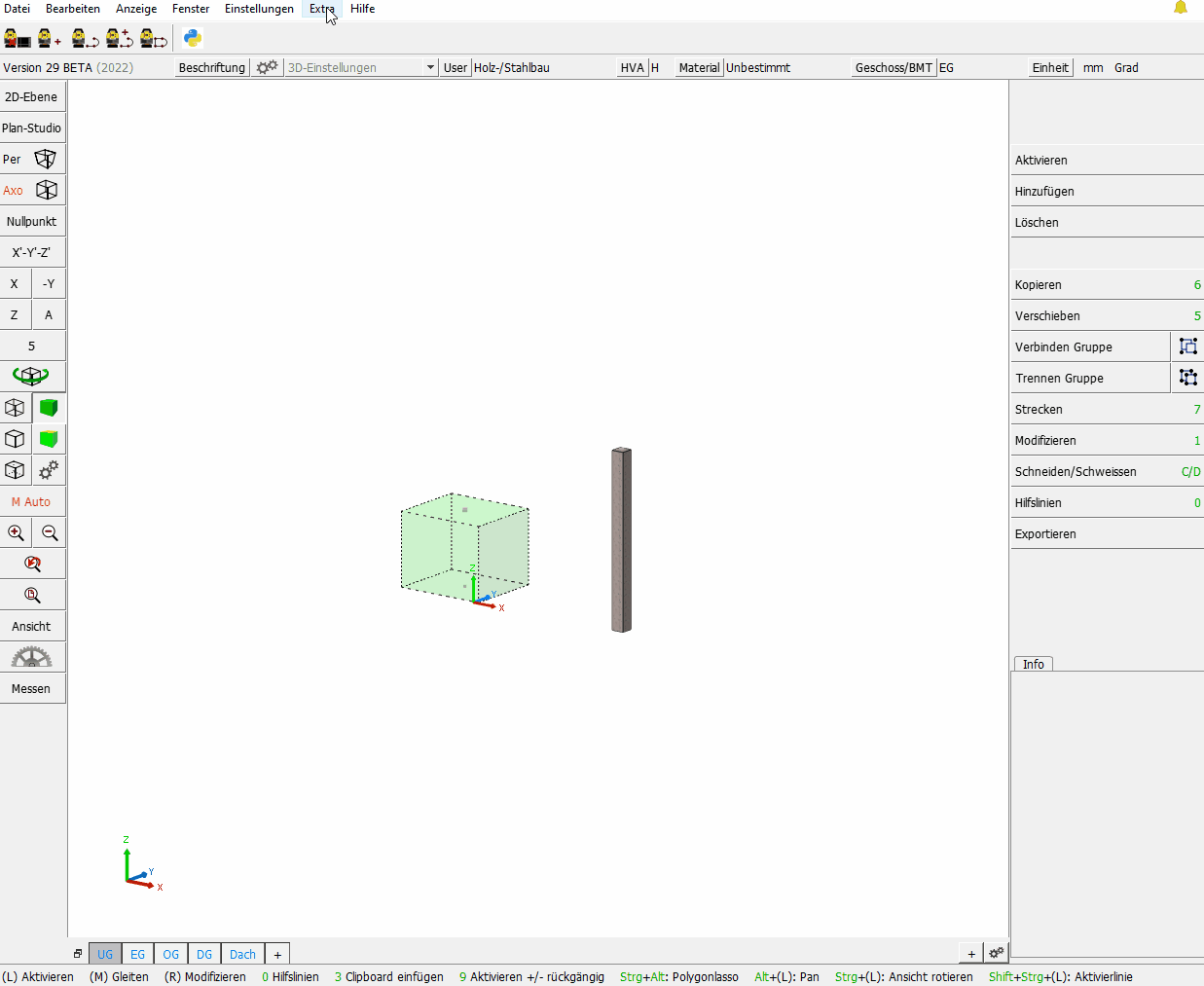

Rhino.Inside cadwork is started via Extra → Rhino Live Link.

Components

The components are divided into four sections:

• The Attributes section contains components for handling attributes.

• In the Select section you will find all components for selecting cadwork elements.

• In the Create Elements section you can find the components for creating cadwork elements.

• The last section Architecture contains components for creating architectural elements.

Context menu

Some components offer functionalities via the context menu. The context menu is called up by right-clicking on the icon.

Via the context menu you can

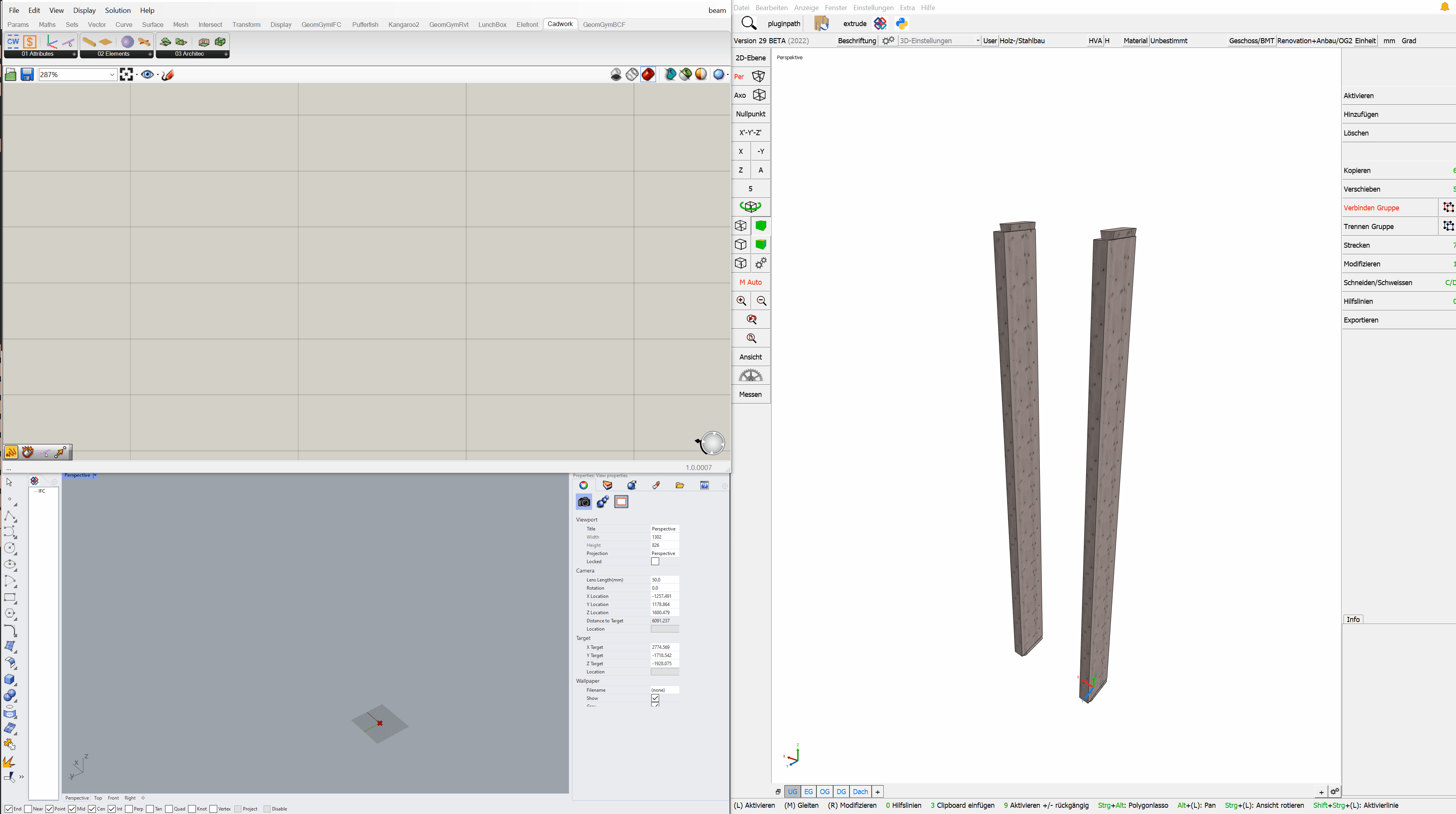

• Select cadwork Elements or 3d/3dc
• Start the preview
• Bake Elements
