3 Select elements

Select Element(s)

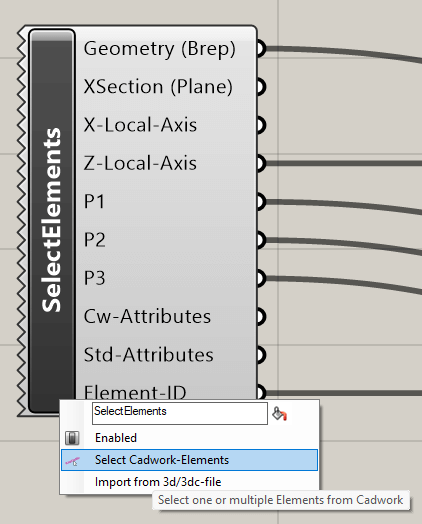

A right click on the icon calls the context menu. With the Select Elements function, cadwork Brep elements (bar, plate, auxiliary volume, bolt) aswell 3d/3dc files can be selected and linked to Grasshopper.

Input	Description
`None`	Select/add elements via context menu

Output	Description
`Geometry`	Geometry (list)
`XSection`	Construction plane
`X-Local-Axis`	X-axis
`Z-Local-Axis`	Z-axis
`P1`	axis point 1
`P2`	axis point 2
`P3`	axis point 3
`Cw-Attributes`	User Attribute
`Std-Attributes`	Standard Attribute
`Element-ID`	Element ID

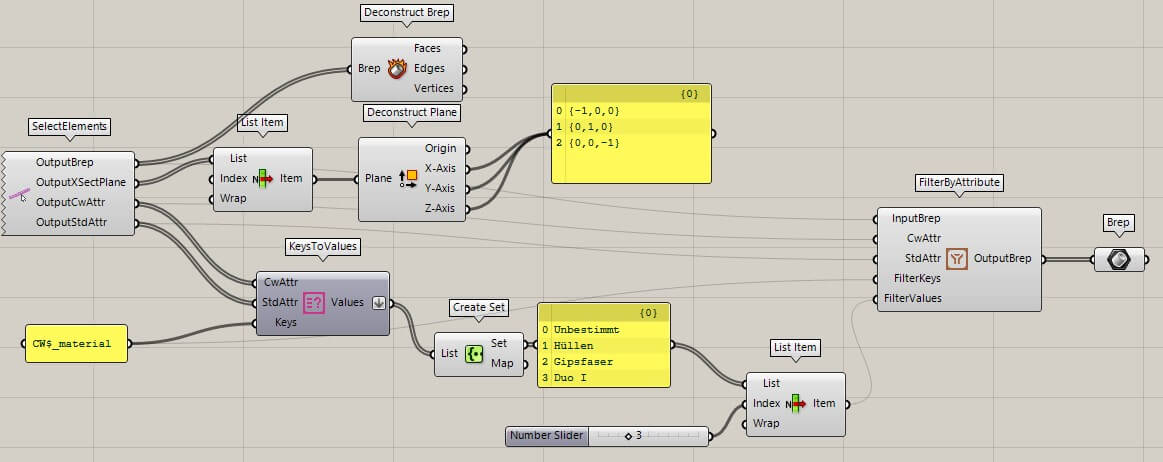

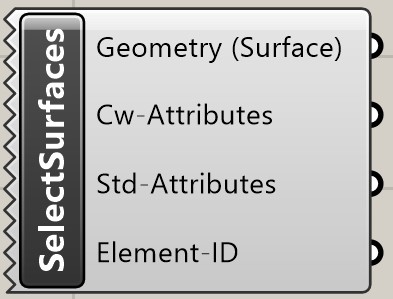

Select Surface(s)

Right-clicking on the icon calls up the context menu. With the Select Elements function, surfaces can be selected and linked to Grasshopper.

Input	Description
`None`	Select/add elements via context menu

Output	Description
`Geometry`	Geometry (list)
`Cw-Attributes`	User Attribute
`Std-Attributes`	Standard Attribute
`Element-ID`	Element ID

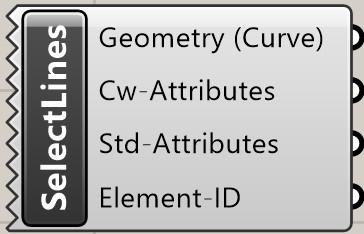

Select Line(s)

Right-clicking on the icon calls up the context menu. With the Select Elements function, lines can be selected and linked to Grasshopper.

Input	Description
`None`	Select/add elements via context menu

Output	Description
`Geometry`	Geometry (list)
`Cw-Attributes`	User Attribute
`Std-Attributes`	Standard Attribute
`Element-ID`	Element ID

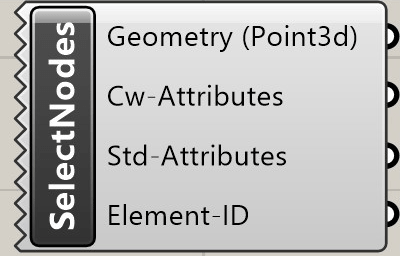

Select Node(s)

Right-clicking on the icon calls up the context menu. With the Select Elements function, nodes can be selected and linked to Grasshopper.

Input	Description
`None`	Select/add elements via context menu

Output	Description
`Geometry`	Geometry (list)
`Cw-Attributes`	User Attribute
`Std-Attributes`	Standard Attribute
`Element-ID`	Element ID
