2 Attributes

User Attributes

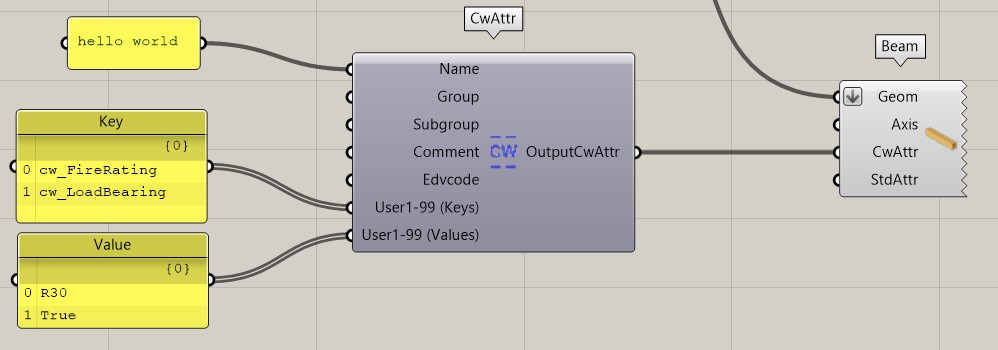

User attributes can be created for the cadwork elements. These can be added as input parameters.

cadwork attributes

Input	Description
`Name`	Name
`Group`	Group
`Subgroup`	Subgroup
`Comment`	Description
`Edvcode`	EDV - Code
`User1-99 (Keys)`	User Attributes Name of the attribute must exist in cadwork. To create the attribute via Grasshopper the prefix `cw_` must be present.
`User1-99 (Values)`	String

Output	Description
`OutputStdAttr`	Return the create cadwork attributes

Standard Attributes

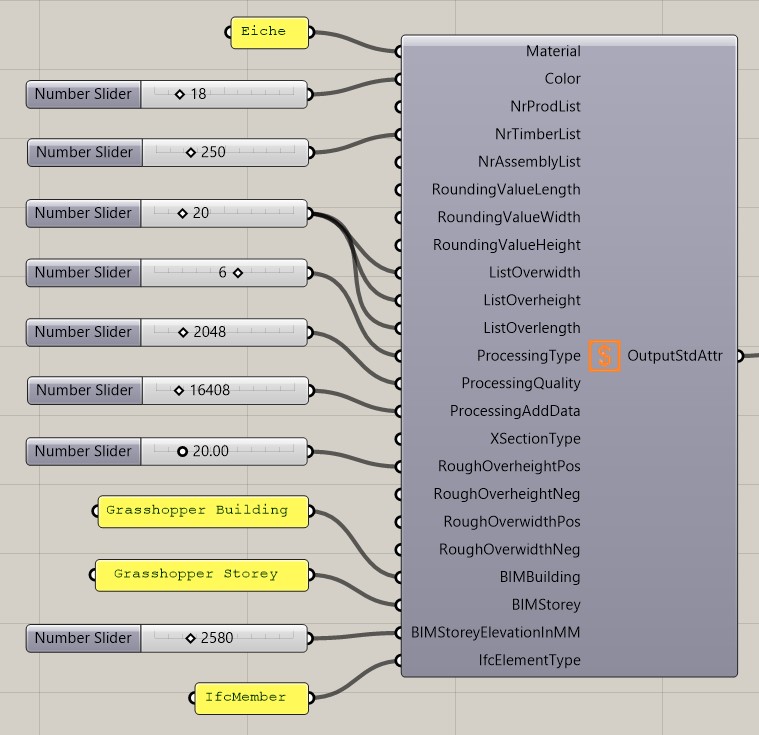

Standard attributes

Input	Description
`Material`	Material name
`Color`	Color number
`NrProdList`	Production List Number
`NrTimberList`	BOM number
`NrAssemlbyList`	Assembly List Number
`RoundingValueLength`	rounding value length [mm]
`RoundingValueWidth`	Rounding value width [mm]
`RoundingValueHeight`	rounding value height [mm]
`ListOverwidth`	Width raw [mm]
`ListOverheight`	height raw [mm]
`ListOverlength`	Length raw [mm]
`ProcessingType`	output type
`ProcessingQuality`	processing quality
`ProcessingAddData`	additional settings
`RoughOverheightPos`	Positive height axis [mm]
`RoughOverheightNeg`	negative height axis [mm]
`RoughOverwidthPos`	Positive width axis [mm]
`RoughOverwidthNeg`	Negative width axis [mm]
`BIMBuilding`	Building
`BIMStorey`	Storey
`BimStoreyEleveationInMM`	Floor Height in [mm]
`IfcElementType`	IfcType (e.g. IfcMember)

Output	Description
`OutputCwAttr`	Return the created cadwork attributes

Filter by Attributes

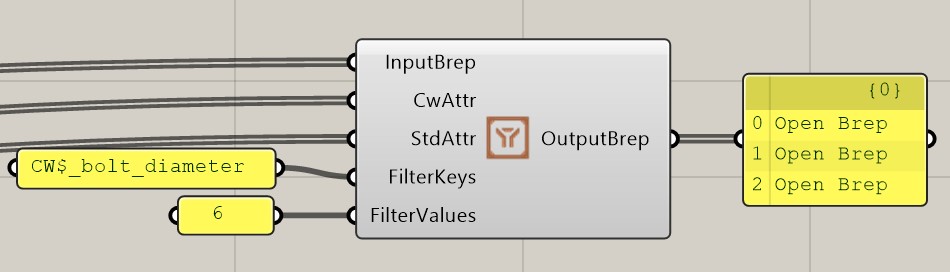

Filter attributes — Brep’s can be filtered by defined keys/values via this component.

Input	Description
`InputBrep`	Brep’s
`CwAttr`	cadwork-Attribut
`StdAttr`	Standard-Attribut
`FilterKeys`	Filter Keys Note spelling ✅ `CW$_foo_bar`
`FilterValues`	Value to be filtered by

Output	Description
`OutputBrep`	Return of the filtered brep

Keys to Values

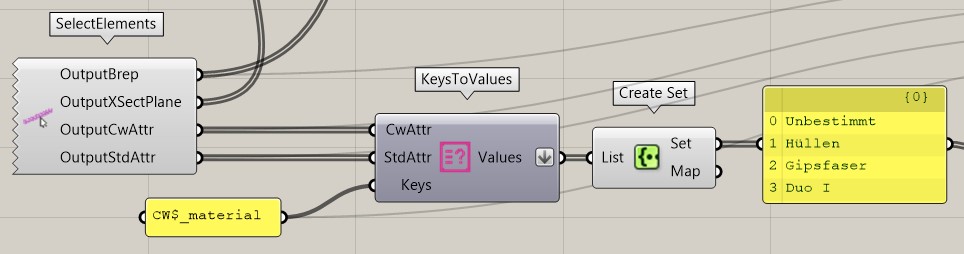

Retrieve attribute values according to given keys.

Keys to values — Filter by default attributes

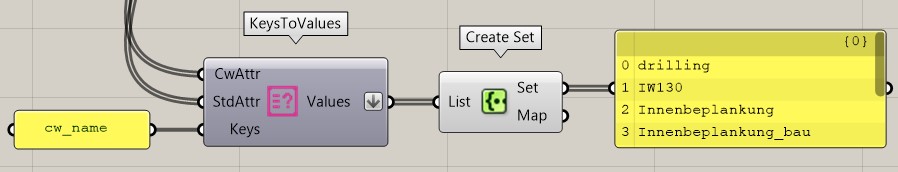

cadwork keys to values — Filter by user attributes

Input	Description
`CwAttr`	cadwork Attributes
`StdAttr`	Standard Attributes
`Keys`	Key to filter by Note prefix! ✅ `StdAttr` `CW$_` ✅ `CwAttr` `cw_`

Output	Description
`OutputBrep`	Return of the filtered brep

Working with Standard Attributes

Output Standard-Attribute

Name	Return value
`CW$_material`	String
`CW$_color`	Integer
`CW$_number_production_list`	Integer
`CW$_number_timber_list`	Integer
`CW$_number_assembly_list`	Integer
`CW$_rounding_value_width`	Real
`CW$_rounding_value_height`	Real
`CW$_rounding_value_length`	Real
`CW$_list_overwidth`	Real
`CW$_list_overheight`	Real
`CW$_list_overlength`	Real
`CW$_processing_type`	Integer
`CW$_processing_quality`	Integer
`CW$_processing_add_data`	Integer
`CW$_xsection_type`	Integer
`CW$_rough_overheight_pos`	Real
`CW$_rough_overheight_neg`	Real
`CW$_rough_overwidth_pos`	Real
`CW$_rough_overwidth_neg`	Real
`CW$_BIMBuilding`	String
`CW$_BIMStorey`	String
`CW$_IfcElementType`	String

ProcessingType

Number (Integer)	Description
0	No output type
1	Rafter
2	Purlin
3	Shifter
4	block plank
6	Stem/Column
7	Truss
11	Hip/valley rafter
20	User 1
21	User 2
22	User 3
23	User 4
24	User 5
30	Stage
120	Plate 1
121	Plate 2
122	Plate 3
123	Plate 4
124	Plate 5

ProcessingQuality

Number (Integer)	Description
0	None
1	Cerve
2	Hearterve
4	Leaf
8	Ridge leaf
16	Tanner butt
32	Offset
64	Bore
128	Profile
256	Slot
512	Eave formwork
1024	Hook blade
2048	Face groove
4096	SS groove inside
8192	SS groove outside
16348	Witch cut
32768	PlaningTotal

ProcessingAddData

Number (Integer)	Description
0	None
16393	Output ESZ single
16396	Output ESZ wall
16408	Reference Container
16424	Multifunction bridge
16904	Log macro in BVN
16520	Processing in single component
18440	Ignore for VBA
19133	All

XSectionType

Number (Integer)	Description
1	Square cross section.
2	Rectangular cross section
3	Round cross section
17	Plate Rectangle

Last edited: 24.09.2024
