5 Architecture
With the architecture components architectural elements can be created in cadwork. The components need a geometry as input. The attributes can be added optionally.
Roof
| Input | Description |
|---|---|
Geom |
Brep closed |
CwAttr |
Userattributes [optional] |
StdAttr |
Standardattributes [optional] |
BakeCW |
bake in cadwork [optional] |
ElementID |
Element ID [optional] |
| Output | Description |
|---|---|
None |
Element is generated in cadwork |
Wall
| Input | Description |
|---|---|
Geom |
Brep closed |
CwAttr |
Userattributes [optional] |
StdAttr |
Standardattributes [optional] |
BakeCW |
bake in cadwork [optional] |
ElementID |
Element ID [optional] |
| Output | Description |
|---|---|
None |
Element is generated in cadwork |
Floor/Slab
| Input | Description |
|---|---|
Geom |
Brep closed |
CwAttr |
Userattributes [optional] |
StdAttr |
Standardattributes [optional] |
BakeCW |
bake in cadwork [optional] |
ElementID |
Element ID [optional] |
| Output | Description |
|---|---|
None |
Element is generated in cadwork |

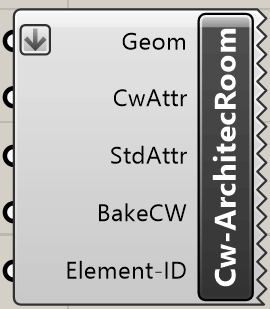

Room
| Input | Description |
|---|---|
Geom |
Brep closed |
CwAttr |
Userattributes [optional] |
StdAttr |
Standardattributes [optional] |
BakeCW |
bake in cadwork [optional] |
ElementID |
Element ID [optional] |
| Output | Description |
|---|---|
None |
Element is generated in cadwork |
