3.2 Program tab

In the Program section, you can launch any type of cadwork file.

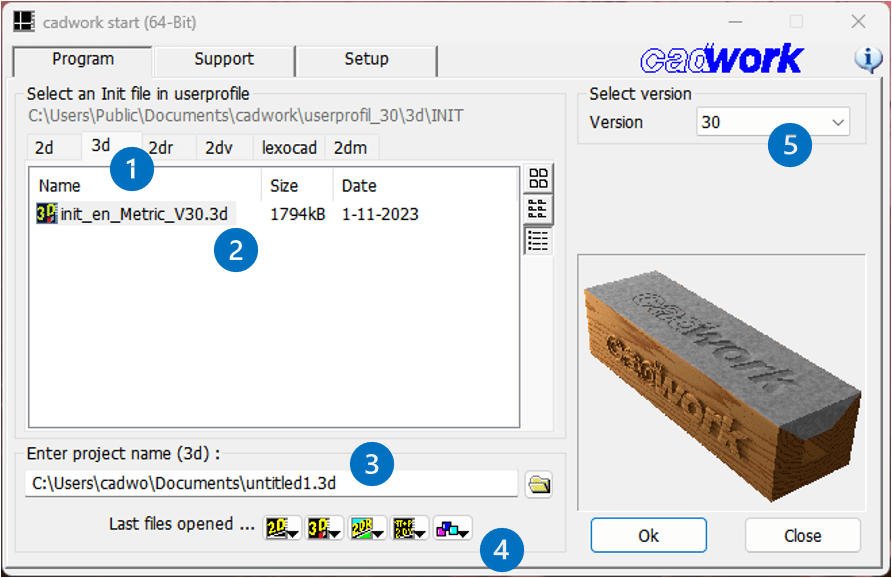

Program tab of cadwork start

1 The tabs allow you to select the module to start.

2 All saved template files (startup templates for new files, also called Init files) for the relevant module can be selected here.

3 Enter project name:
The project name for the new file can be defined. If you then click the OK button, the file is created and opened in according module.

4 Last files opened:
By clicking on the relevant module, the last opened projects are displayed and can thus be quickly reopened. The most recent is at the top of the list.

5 If several versions of cadwork are installed, it is possible to change the version here, but the most recent version should remain selected by default.
