6.4 Assemblies

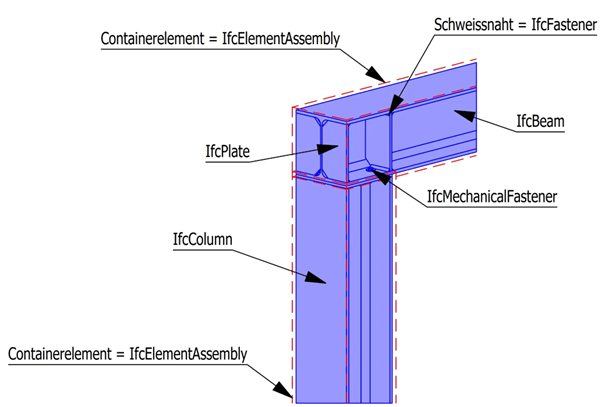

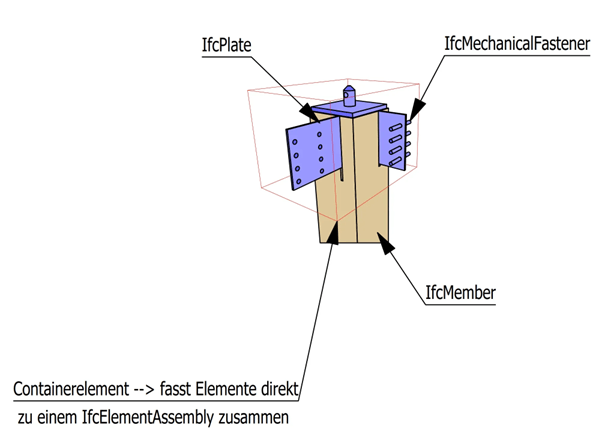

The IfcElementAssembly represents complex element assemblies that are made up of several elements. Timber or steel construction assemblies, such as trusses and various types of frames, can be represented by the IfcElementAssembly entity. Stair sections and other prefabricated elements like steel brackets are also examples of the general entity IfcElementAssembly.

  • IfcElementAssembly
    • IfcPlate
    • IfcMember
    • IfcMechanicalFastener
